Description

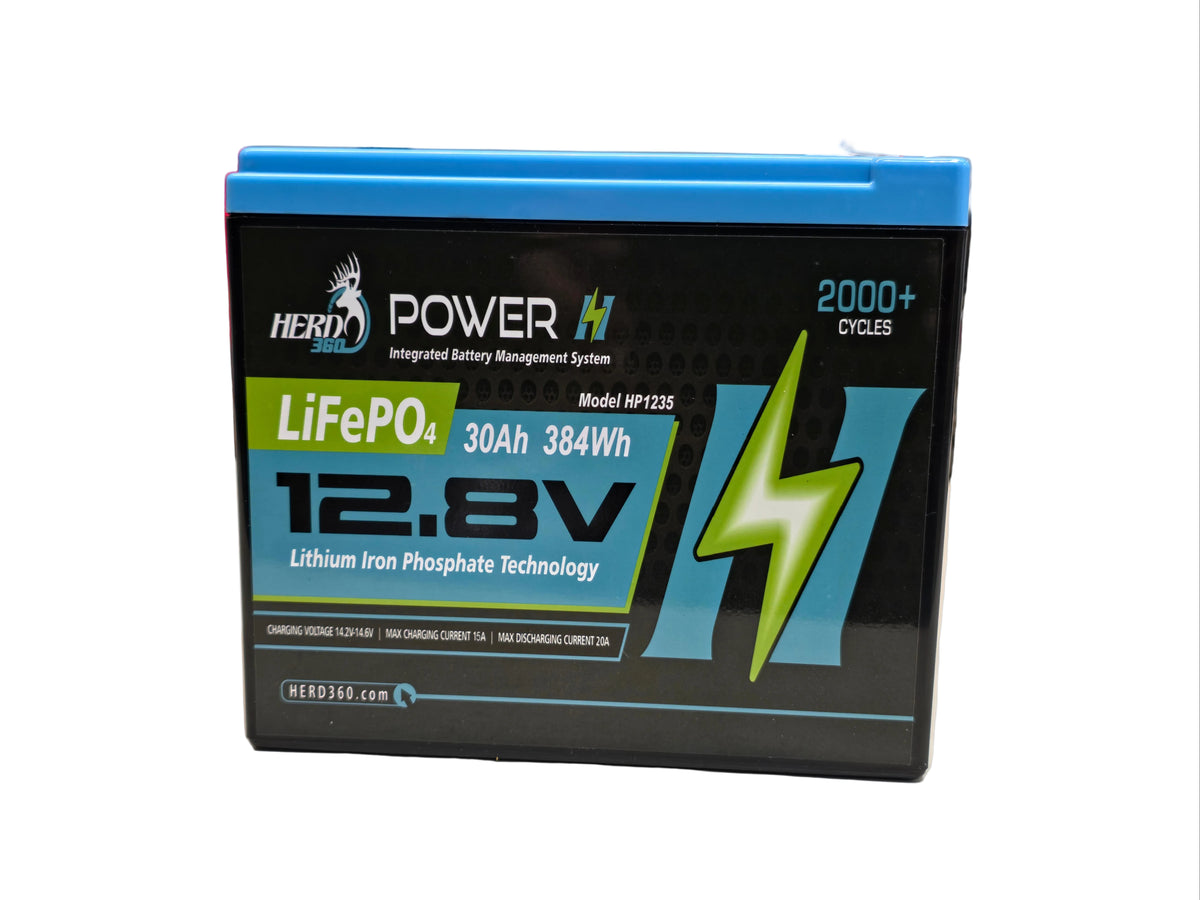

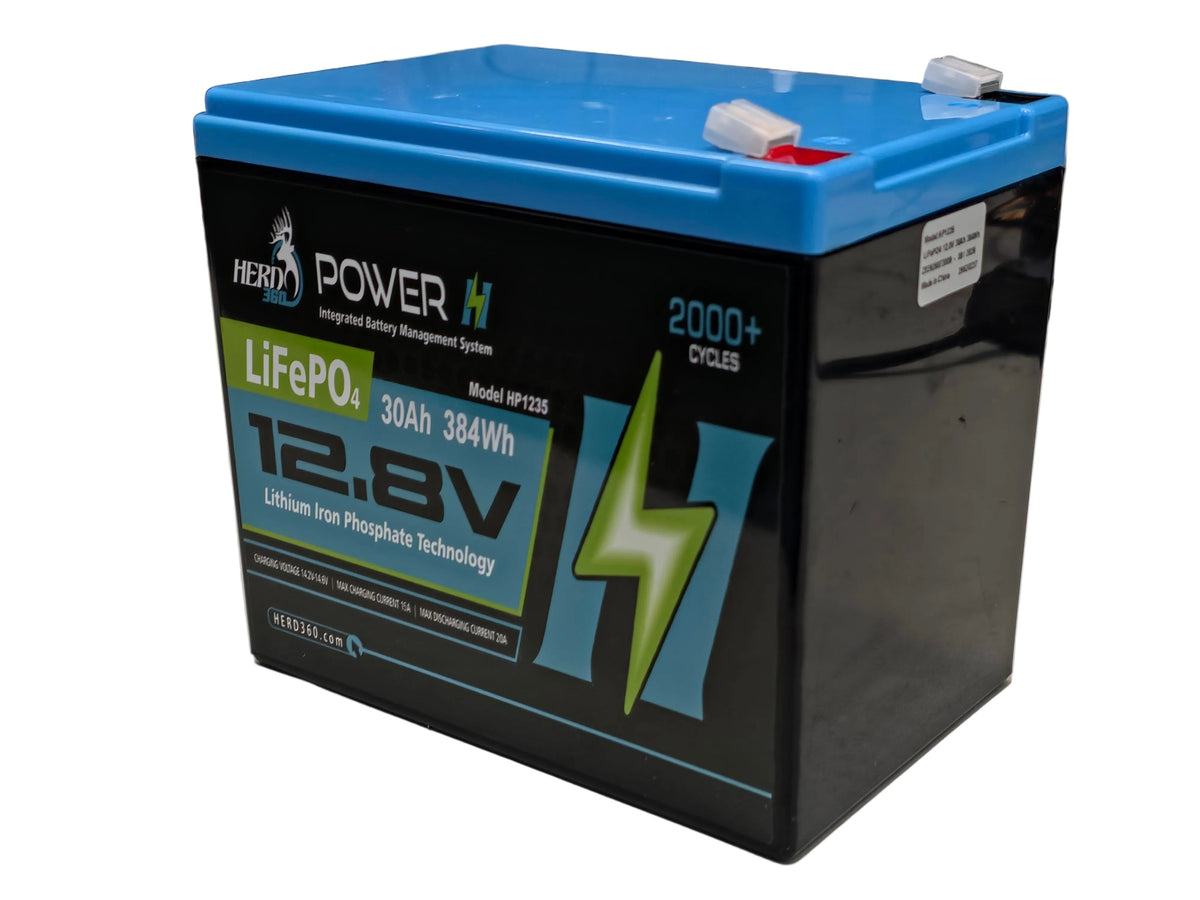

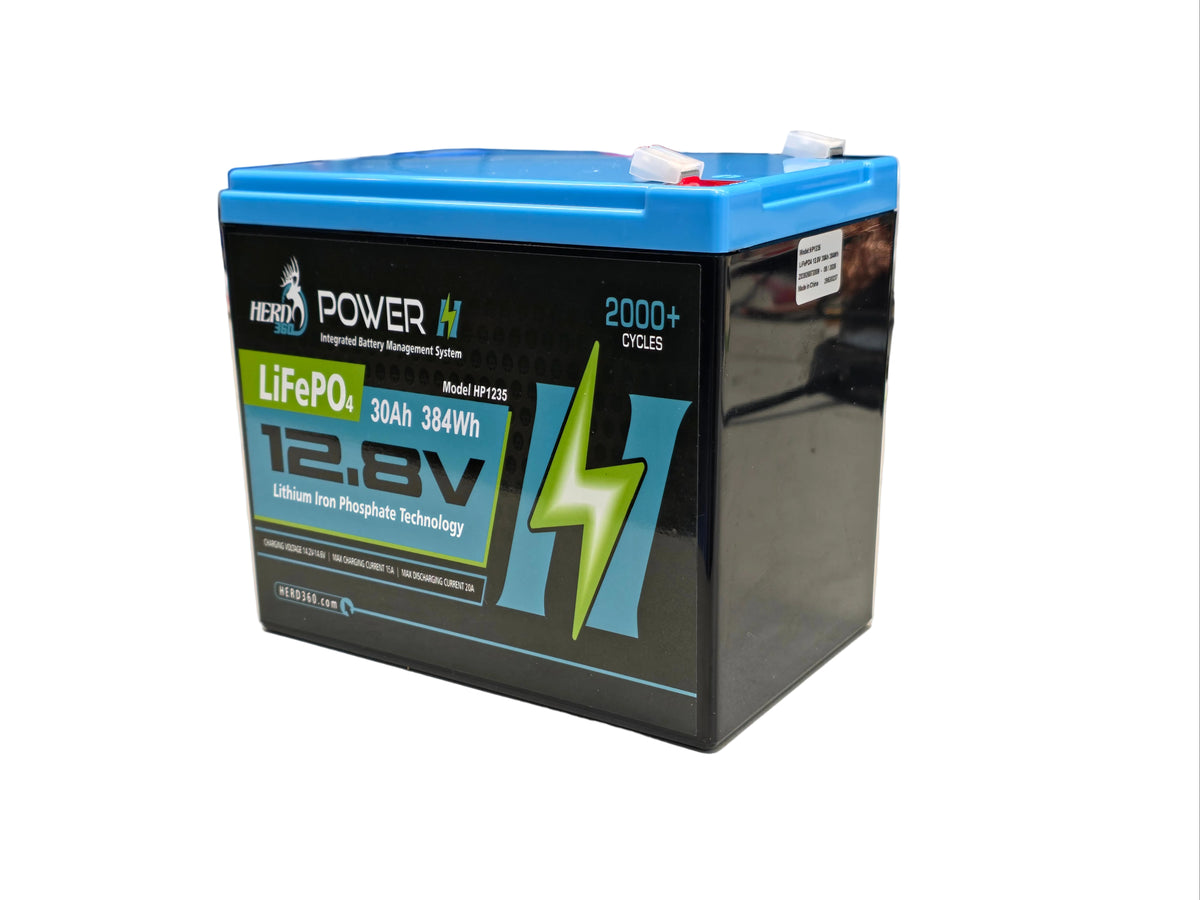

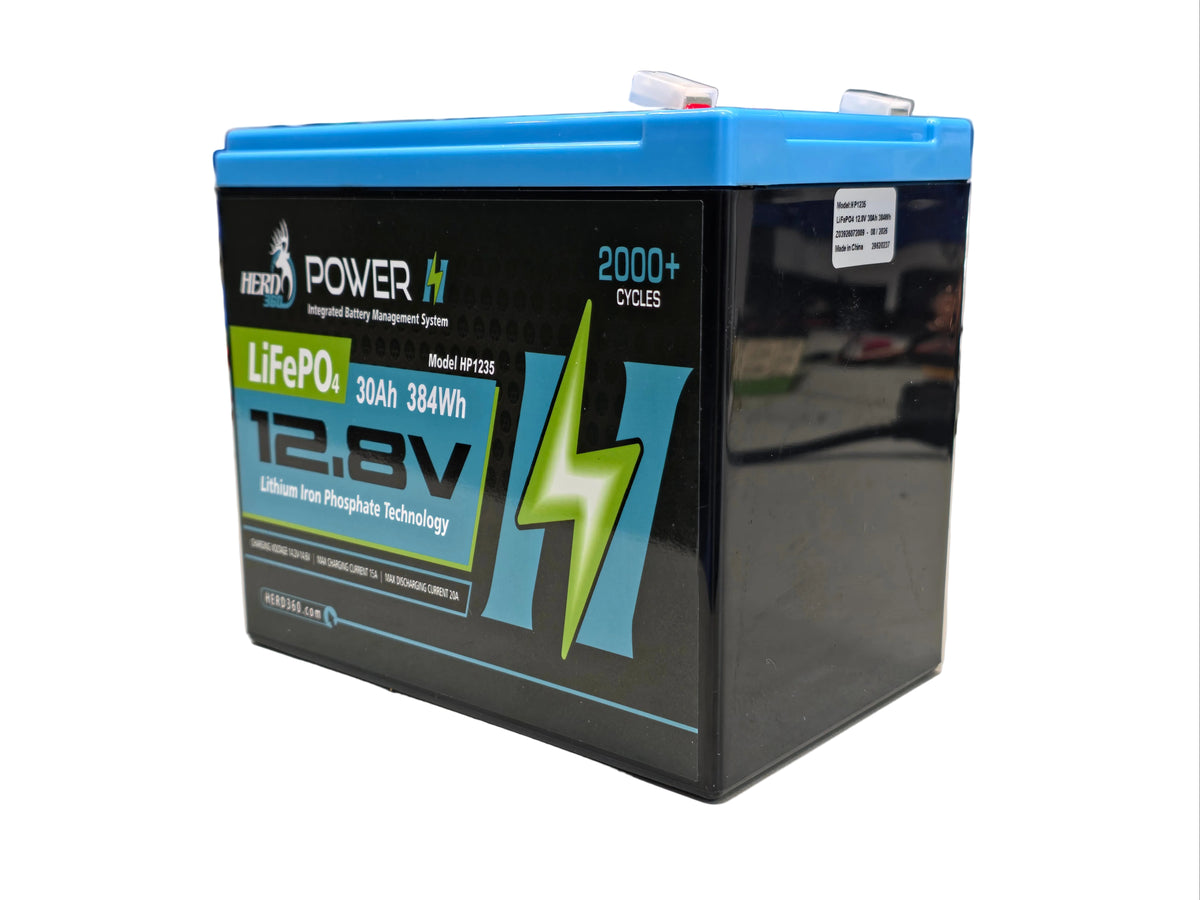

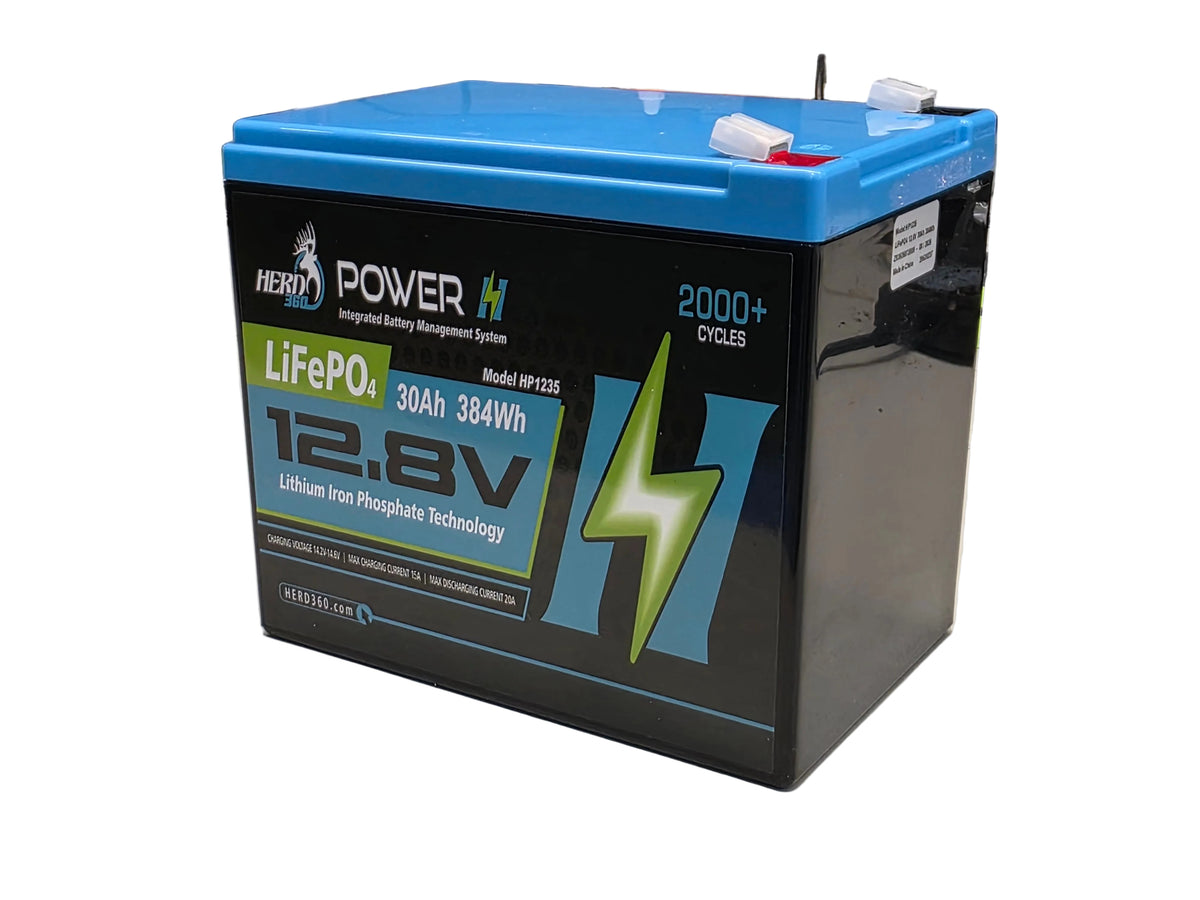

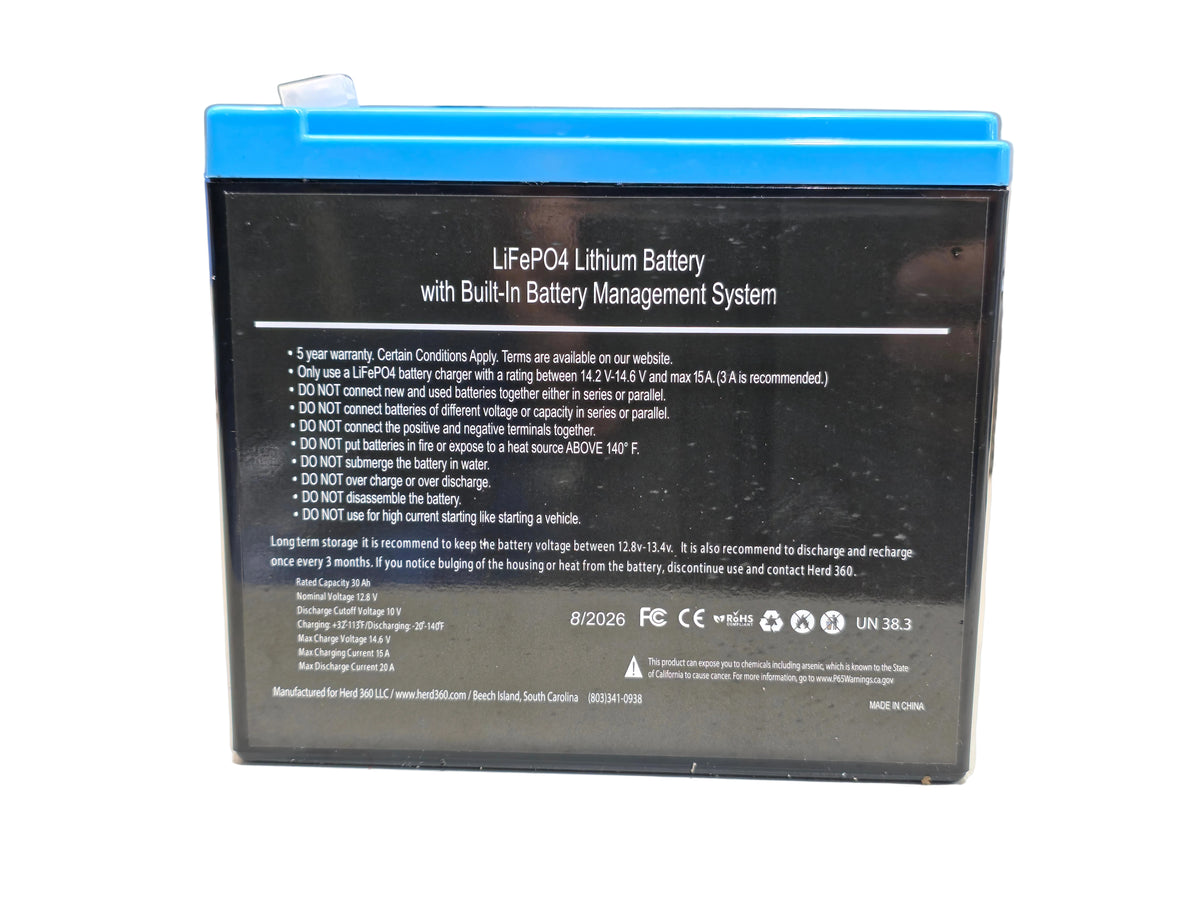

Power your trail cameras and field operations with confidence. The Herd 360 30ah Lithium Battery delivers professional-grade performance in a compact, lightweight package designed for serious hunters and land managers.
Built with premium Grade A LiFePO4 cells, this battery offers exceptional reliability. You get up to 20 times longer cycle life than traditional lead acid, weighs 40% less, and delivers twice the power—all while maintaining consistent energy output even under heavy discharge. The advanced Battery Management System protects against overcharge, over-discharge, overcurrent, and short circuits, ensuring safe operation in demanding conditions.
With a wide operating temperature range from -20°C to 60°C, this battery performs reliably across seasons and climates. At just 5.64 lbs and measuring 5.95" × 3.86" × 5.16", it fits seamlessly into all Herd 360 battery boxes (must remove the top and bottom foam in the Elite box) for flexible deployment.

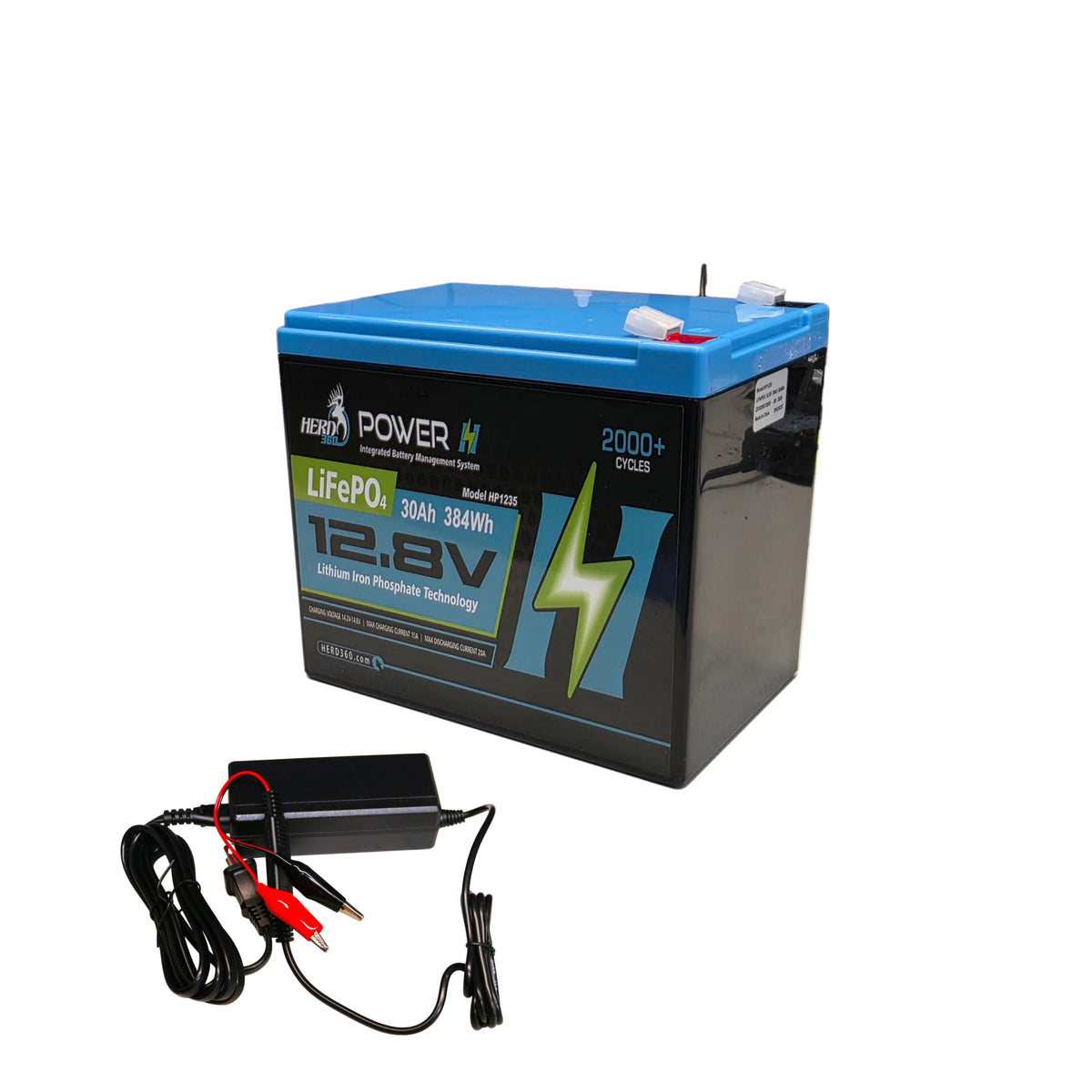

Backed by a 5-year warranty (100% coverage first 24 months, pro-rated 40% thereafter), this is the power solution you can trust. Charge using any LiFePO4 BMS-compatible charger.

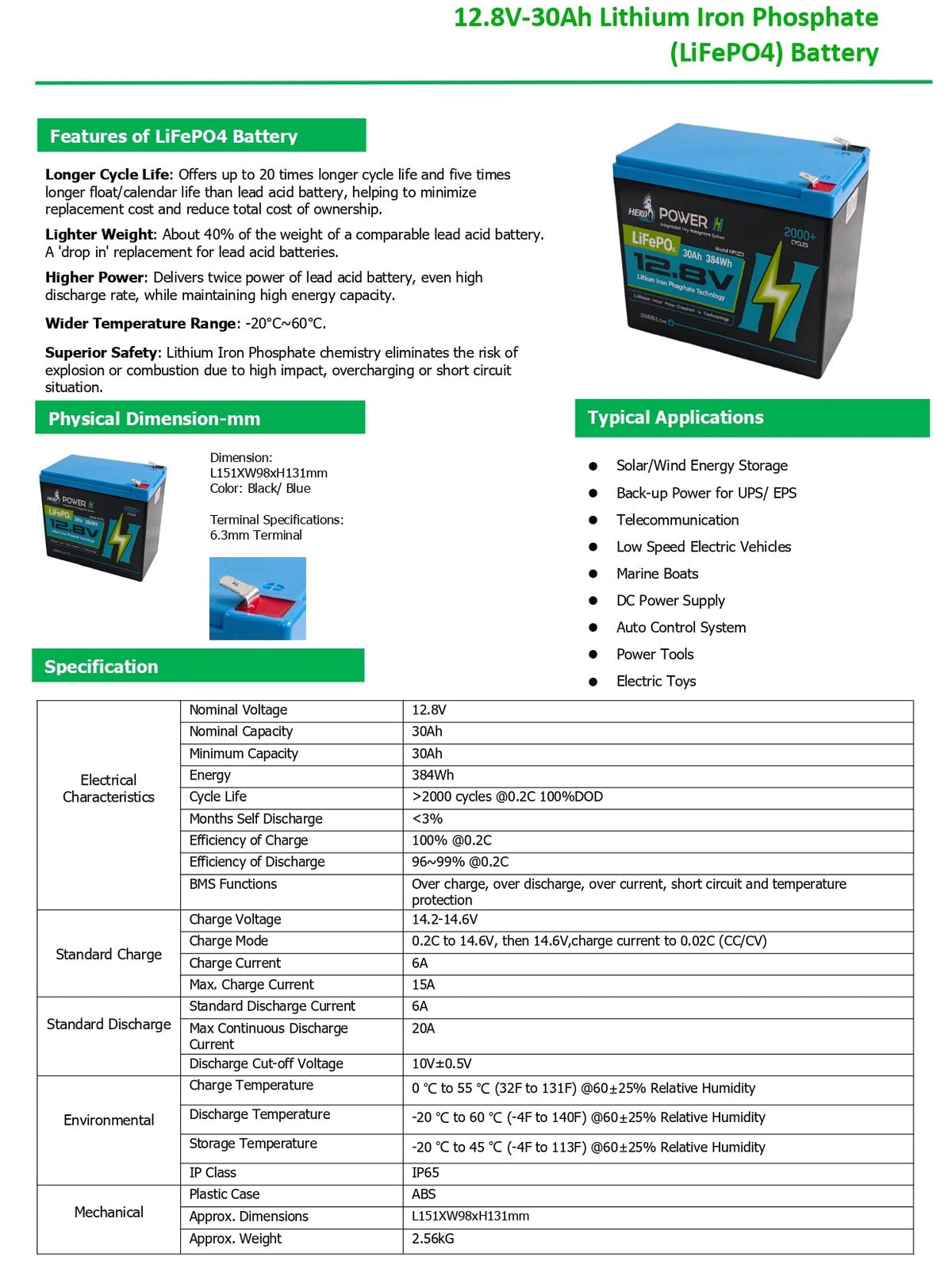

Specifications
Electrical Characteristics
Nominal Voltage 12.8V
Nominal Capacity 30Ah
Minimum Capacity 30Ah
Energy 384Wh
Cycle Life >2000 cycles@0.2C100%DOD
Months Self Discharge <3%
Efficiency of Charge 100%@0.2C
Efficiency of Discharge 96~99%@0.2C
BMS Functions Overcharge, overdischarge, overcurrent, shortcircuit and temperature
protection
Standard Charge
Charge Voltage 14.2-14.6V
Charge Mode 0.2Cto14.6V,then14.6V,chargecurrentto0.02C(CC/CV)
Charge Current 6A
Max. Charge Current 15A
Standard Discharge
Standard Discharge Current 6A
Max Continuous Discharge Current 20A
Discharge Cut-off Voltage 10V±0.5V
Environmental
Charge Temperature 0℃to55℃(32Fto131F)@60±25% Relative Humidity
Discharge Temperature -20℃ to 60℃(-4Fto140F)@60±25% Relative Humidity
Storage Temperature -20℃ to 45℃(-4Fto113F)@60±25% Relative Humidity
IPClass IP65
Mechanical
Plastic Case ABS
Approx. Dimensions L 5.95" X W 3.86" x H 5.16"
Approx. Weight 5.64lbs
Warranty 5yr (first 24mths 100%, 25-60mths pro-rated 40%)
